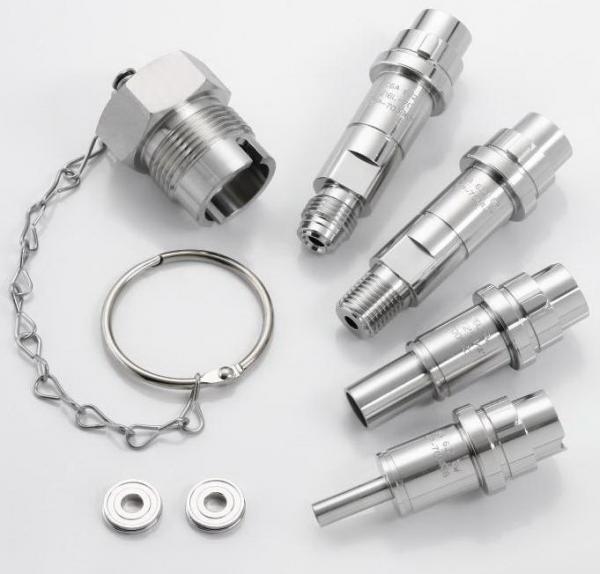

CGA DISS 接頭, 鋼瓶管件, 鋼瓶接頭 Cylinder Connections/Fittings/Adapter

CGA DISS 接頭, 鋼瓶管件, 鋼瓶接頭 Cylinder Connections/Fittings/Adapter

UHP 鋼瓶接頭

更詳細產品圖片

商品型號: CGA DISS FITTINGS





CGA V-1-2005 Standard材質: SS316L, VIM+VAR 316L, VAR 316L
墊片材質: Nickel 200, PCTFE, Aluminum
尺寸: 1/4"
表面處理: BA, EP Grade





商品規格:

CGA DISS VALVE OUTLETS AND CONNECTIONS

氣體鋼瓶接頭

檢視完整表格

Gas Connection Assignment Table



GAS CGA DISS CGA JIS DIN
Ammonia 720 705 22-R DIN 6
Argon 718 580 22-R or 23-R DIN 6
Arsenic Pentafluoride 642 - - -
Arsine 632 350 22-L -
Boron Trichloride 634 660 - DIN 8
Boron Trifluoride 642 330 22-L DIN 8
Carbon Dioxide 716 320 - DIN 6
Carbon Monoxide 724 350 22-L DIN 5
Chlorine 728 - 26-R DIN 8
Diborane 632 350 22-L -
Dichlorosilane 636 678 - DIN 5
Diethlyzinc 726 510 - -
Diethyltelluride 726 - - -
Dimethylzinc 726 - - -
Disilane 632 - - -
Germane 632 350 or 660 - -
Halocarbon 11 716 660 - -
Halocarbon 12 716 660 - DIN 6
Halocarbon 13 716 660 - DIN 6
Halocarbon 14 716 320 or 580 - DIN 6
Halocarbon 23 716 660 - DIN 6
Halocarbon 115 716 660 - DIN 6
Halocarbon 116 716 660 - -
Helium 718 580 22-R or 23-R DIN 6
Hydrogen 724 350 22-L DIN 1
Hydrogen Bromide 634 330 26-R DIN 8
Hydrogen Chloride 634 330 26-R DIN 8
Hydrogen Fluoride 638 660 or 670 26-R -
Hydrogen Sulfide 722 330 - DIN 5
Krypton 718 580 22-R or 23-R DIN 6
Neon 718 580 22-R or 23-R DIN 6
Nitrogen 718 580 22-R or 23-R DIN 10
Nitrogen Trifuoride 640 330 or 670 - DIN 8
Nitrous Oxide 712 326 - DIN 8
Oxygen 714 540 22-R or 23-R DIN 9
Perfluoropropane 716 660 - -
Phosphine 632 350 or 660 - DIN 1
Phosphorus Pentafluoride 642 330 or 660 - -
Silane 632 350 - -
Silicon Tetrachloride 636 - - -
Silicon Tetrafluoride 642 330 22-L -
Sulphur Hexafluoride 716 590 26-R DIN 6
Trichlorosilane 636 - - -
Triethlaluminum 726 510 - -
Tungsten Hexafluoride 638 670 - DIN 8
Xenon 718 580 22-R DIN 6



Gas Connection Assignment Table Standard
* Compressed Gas Association Publication V-1 (1994 Edition)
* Deutsher Institute fur Normung 477 Part 1 (May 1990 Edition)
* Japanese Industrial Standard B8244 (Translated) (1989 Edition)
* Japanese Industrial Standard B8246 (Translated) (1989 Edition)
* International Organization for Standardization ISO/DIS 407 (1983 Edition)
* Deutsher Institute fur Normung 477 Part 8 (1990 Edition)

認証:
  • SEMI/EJMA
訂購資訊:
  • 最小訂購量: Negotiable
  • 自行開發商品
